ACM SIGGRAPH Asia 2017 (Transactions on Graphics)


Compact Single-Shot Hyperspectral Imaging Using a Prism

  Seung-Hwan Baek Incheol Kim Diego Gutierrez* Min H. Kim
  KAIST *Universidad de Zaragoza, I3A

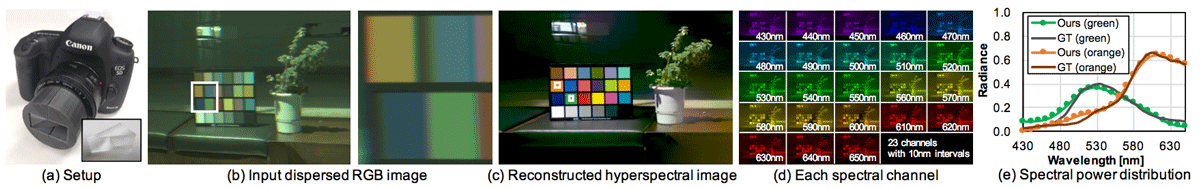

  We propose a compact single-shot spectral imaging method that enables us to capture hyperspectral images using a conventional DSLR camera equipped with an ordinary prism only. Our computational method reconstructs full spectral information of a scene from dispersion over edges. Therefore, our setup requires no coded aperture mask and no collimating optics, which are necessary for traditional hyperspectral imaging. Our method allows for simple and cost-e icient hyperspectral imaging with high accuracy. (a) Our acquisition setup. (b) Input image. (c) Reconstructed hyperspectral image (d) Corresponding captured spectral channels. (e) Spectral plots of two patches from the captured ColorChecker, compared to ground truth.


  Abstract

  We present a novel, compact single-shot hyperspectral imaging method. It enables capturing hyperspectral images using a conventional DSLR camera equipped with just an ordinary refractive prism in front of the camera lens. Our computational imaging method reconstructs the full spectral information of a scene from dispersion over edges. Our setup requires no coded aperture mask, no slit, and no collimating optics, which are necessary for traditional hyperspectral imaging systems. It is thus very cost-effective, while still highly accurate. We tackle two main problems: First, since we do not rely on collimation, the sensor records a projection of the dispersion information, distorted by perspective. Second, available spectral cues are sparse, present only around object edges. We formulate an image formation model that can predict the perspective projection of dispersion, and a reconstruction method that can estimate the full spectral information of a scene from sparse dispersion information. Our results show that our method compares well with other state-of-the-art hyperspectral imaging systems, both in terms of spectral accuracy and spatial resolution, while being orders of magnitude cheaper than commercial imaging systems.

  BibTeX

  @Article{Prism:SIGA:2017,
  author  = {Seung-Hwan Baek and Incheol Kim
             and Diego Gutierrez and Min H. Kim},
  title   = {Compact Single-Shot Hyperspectral Imaging Using a Prism},
  journal = {ACM Transactions on Graphics (Proc. SIGGRAPH Asia 2017)},
  year    = {2017},
  volume  = {36},
  number  = {6},
  pages   = {217:1-12},
  doi     = "10.1145/3130800.3130896",
  url     = "http://dx.doi.org/10.1145/3130800.3130896",
  }



icon
Preprint paper:
PDF (16.8MB)
icon
Supplemental document #1:
PDF (1.8MB)

icon
Supplemental
document #2:
PDF (31.5MB)
